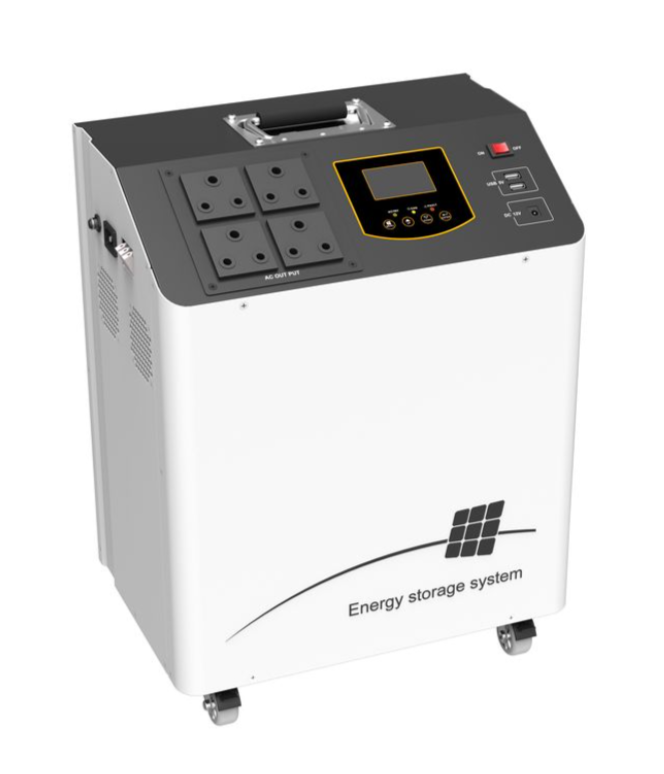

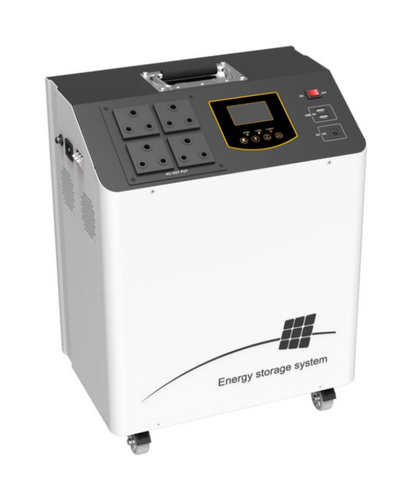

Navasolar Trolley Inverter 1KW / 12VDC 960WH LIFEPO4 SA Outlets

All-In-One Energy Storage Solar System

NB: Please ensure the battery breaker is switched on before turning on the inverter

x Don't Use When the Low Battery Voltage Alarm is activated. Charge the unit when the alarm is Activated

x If the unit is discharged too much, the unit will flash the display without starting up. The unit needs to be left on charge for 24h so that the battery can recharge.

x Charging should be mainly done from the power grid, not only Solar.

x Unit has a minimum charge time of 10h for full charge.

x This Unit is not a replacement for a Wall Mount Inverter. Plug and Play -Portable unit

x Don't adjust the settings - please send a request for any settings changes you would like to make

x No Monitoring Software available for these units

x Please consult the user manual when you have an error. Error codes are at the back of the manual with an explanation of what causes the problem

x Please supply the error code when a return is logged.

May the power be with you

BP1800 Series

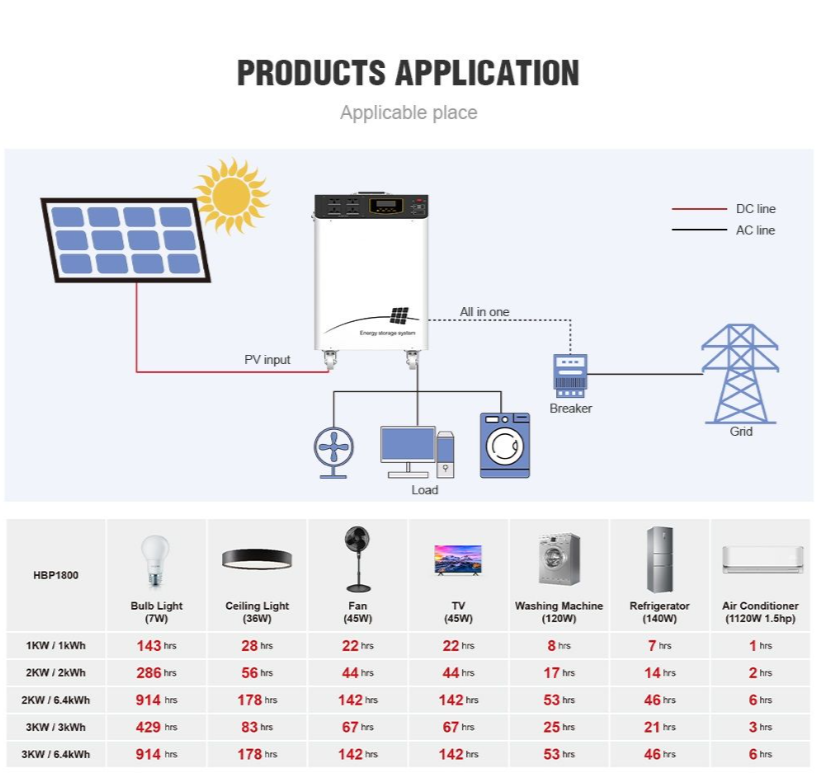

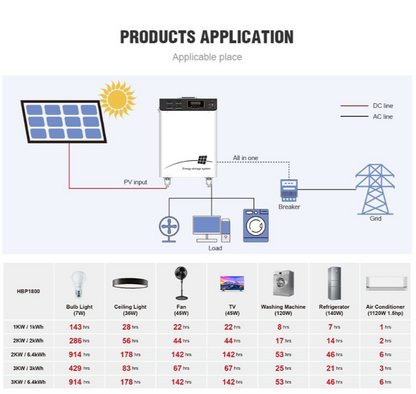

HBP 1800 series all-in-one energy storage solution supports 1 kW output for different load appliances. It's based on the original cabinet design, stacked with a solar energy storage lithium battery 960wh, and built with a battery protection system, fully retaining the use of load power in applications of residential, school, commercial and public utility areas.

1000W - Pure Sine Wave Inverter

4000+ Charge Cycle

24/7 UPS Plug & Play Use

2 x USB ports for DC Load

Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery, capable of charging larger USB devices like laptops.

Includes pre-installed solar charging optimisation module that functions as a maximum power point tracker (MPPT), resulting in up to 40% faster charge times.

With LiFePO4 lithium cells, known for stability and safety, are monitored by a state-of-the-art battery management system that prevents overcharge, over-current, and short circuiting.

Built-in Multi-safety protection that includes short circuit, overload and over-temperature and error code reporting

Specifications

Model: NV-BP18-1012

Inverter:

Rated power: 1000W

Output voltage waveform: Pure sine wave

Output voltage regulation: 230Vac 5%

Output frequency: 50Hz / 60Hz ( 0.2Hz)

Peak efficiency: 90%

Nominal DC input voltage: 12Vdc ( 0.3)

Standby Consumption: < 25W

PV Input:

Max solar power input: 900W

PV max charging current: 60A( 3A)

Combined charging current: 70A( 4A)

Max efficiency:

PV array open circuit voltage: 105VDC

PV Array MPPT Voltage Range: 15~105V

AC Input:

AC input voltage: 230VAC 5%

Acceptable input voltage range: 90-280VAC

Nominal input frequency: 50Hz / 60Hz (Auto detection)

Transfer time: 10ms typical (UPS, VDE); 20ms typical (APL)

AC Charge:

Charging current @ Nominal input voltage: 10/20A ( 4A)

Charging Algorithm: 4-step (Li)

Output:

AC output: 230Vac (Socket x 4pcs)

USB (5V 2.4A): DC output x 2pcs

USB (12V 1A): DC output x 1pcs

Lithium Battery:

Energy: 960Wh

Nominal voltage:12.8V

Battery capacity:75Ah

Protection board:100A

Standard charging & discharge current: 50A

Operation temperature:

Charge 0~45

Discharge -10~60

Dimension:

Product Size (LxWxH) (mm) 379x254x499

Packing Size (LxWxH) (mm) 495x365x680

Net Weight (kg): 23

Gross Weight (kg): 32.8

What's in the box
1 x NV-BP18-1012 Inverter Trolley
