Specifications
| Brand |
TP-Link |
| Model |

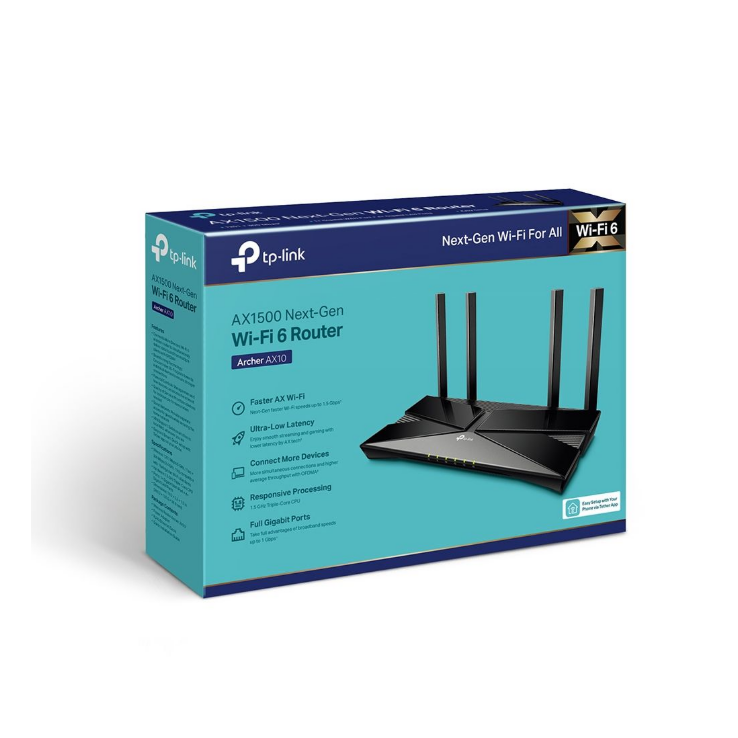

Archer AX10 (AX1500) |
| Colour |
Black, White |
| Connection Type |
Ethernet, Wi-Fi |
| Power Source |
AC-Powered (12V, 1A) |
| Antenna Type |
Omnidirectional (4 x Fixed High-Performance Antennas) |
| Wi-Fi Standard / Networking Standards |
IEEE 802.11ax/ac/n/a (5GHz), IEEE 802.11n/b/g (2.4GHz) |
| Wi-Fi Band |
Dual-Band (2.4GHz & 5GHz) |
| Wi-Fi Speeds |
5GHz: 1201 Mbps (802.11ax); 2.4GHz: 300 Mbps (802.11n) |
| WiFi Range |
3-Bedroom Houses (4x Fixed High-Performance Antennas; multiple antennas form a signal-boosting array to cover more directions and large areas) |
| Beamforming |
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High, Dual-Band (allocate devices to different bands for optimal performance) |
| OFDMA |
Simultaneously communicates with multiple Wi-Fi 6 clients |
| Airtime Fairness |
Improves network efficiency by limiting excessive occupation |
| 4 Streams |
Connect your devices to more bandwidth |
| Security Algorithms |
WPA2, WPA3 |
| Network Protocols Supported |
TCP/IP, DHCP, Wi-Fi IEEE 802.11 |
| Ethernet LAN Interface Type |
Gigabit |
| Processor |
1.5 GHz Triple-Core CPU |

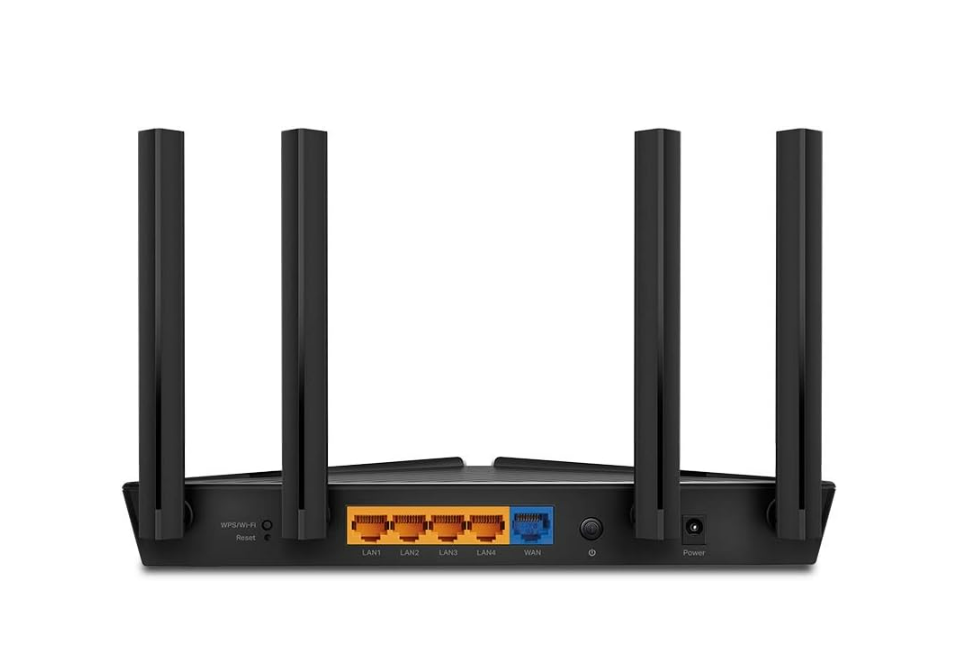

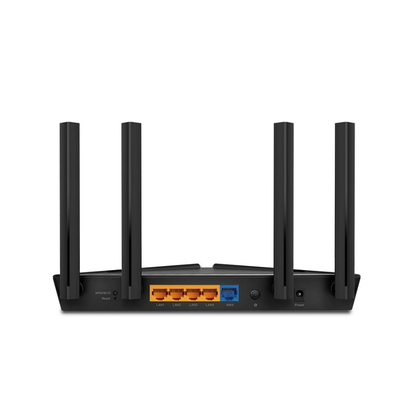

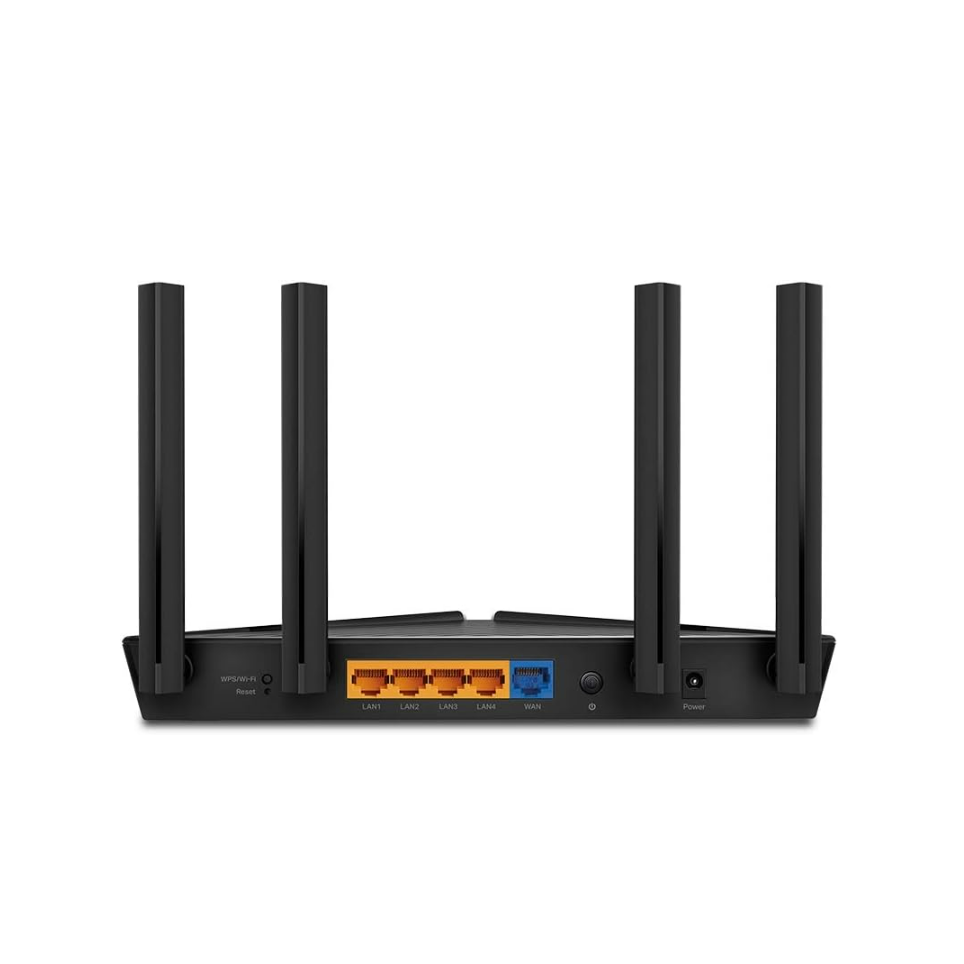

| Ethernet Ports |
1 x Gigabit WAN Port, 4 x Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button, On/Off, LED On/Off, Reset |
| WiFi Encryption |
WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Guest Network |
1 x 5GHz Guest Network, 1 x 2.4GHz Guest Network |
| VPN Server |
OpenVPN, PPTP |
| Protocols |
IPv4, IPv6 |
| Parental Controls |
URL Filtering, Time Controls |
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service |
QoS by Device |
| Working Modes |
Router Mode, Access Point Mode |
| Management |
Tether App, Webpage |
| Dimensions (W x D x H) |
10.2 x 5.3 x 1.5 in (260.2 x 135.0 x 38.6 mm) |
| Certifications |
FCC, CE, RoHS |
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity |
10% ~ 90% non-condensing |
| Storage Humidity |
5% ~ 90% non-condensing |
Faster Wi-Fi 6 — get next-gen Wi-Fi speeds up to 1.5 Gbps. Triple-core CPU — instant response to all your network activity with a 1.5 GHz triple-core CPU. Broader coverage — 4 antennas and beamforming technology focus signal towards individual clients for broader coverage. Connect dozens of devices — more simultaneous connections and higher average throughput with OFDMA. Full Gigabit ports — take full advantage of broadband speeds up to 1 Gbps. Easy setup — finish your network upgrade in minutes with the Tether app.
Archer AX10 Wi-Fi 6 (11ax) 5GHz 2x2 - 1201 Mbps; GbE Solution - 1000 Mbps; 2x2 Wi-Fi 5 (11ac) Solution - 867 Mbps; 1x1 Wi-Fi 5 (11ac) Solution - 433 Mbps.
Advanced, Revolutionary Wi-Fi 6
Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.

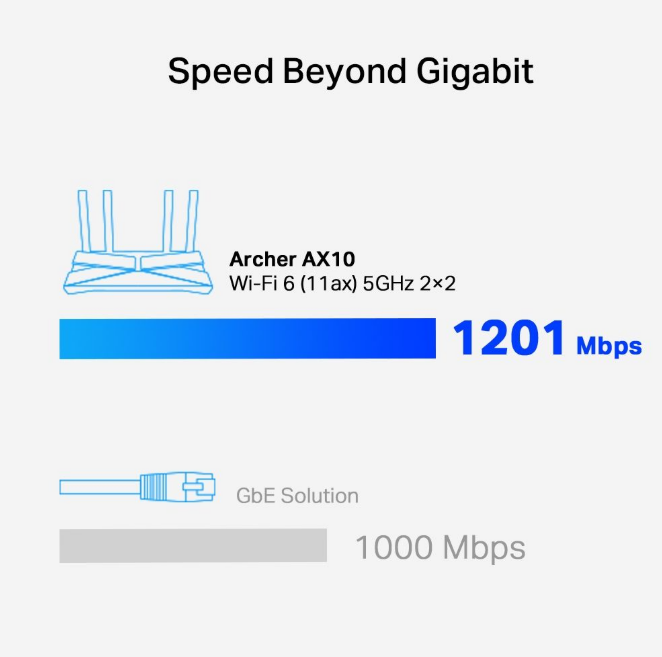

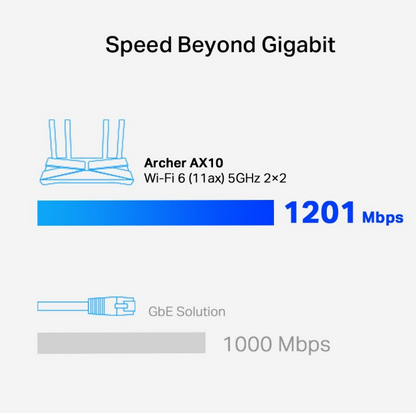

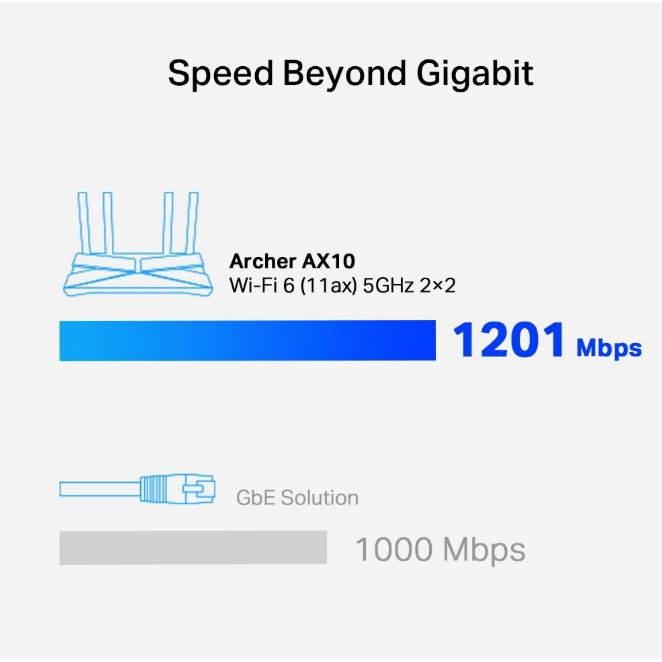

Speed Beyond Gigabit
The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.
Connect Dozens Of Devices
Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.
Less Lag, More Fun
Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices — all at the same time.
Triple-Core Processor
A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for online video chatting.
Boosted Wi-Fi Coverage
Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client. Wi-Fi range covers 3-bedroom houses.
Gigabit Broadband Internet Access
All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.
Easy Setup And Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.
Cloud Service & NAT Forwarding
- Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS (TP-Link, NO-IP, DynDNS)
- NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
- DHCP: Address Reservation, DHCP Client List, Server
WiFi Reception Sensitivity
5GHz: 11a 6Mbps: -97dBm, 11a 54Mbps: -79dBm; 11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS11: -66dBm; 11ac VHT40_MCS0: -94dBm, 11ac VHT40_MCS11: -63dBm; 11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS11: -60dBm; 11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11: -63dBm; 11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11: -60dBm; 11ax HE80_MCS0: -89dBm, 11ax HE80_MCS11: -58dBm
2.4GHz: 11g 6Mbps: -91dBm, 11a 54Mbps: -74dBm; 11n HT20_MCS0: -90dBm, 11n HT20_MCS7: -73dBm; 11n HT40_MCS0: -88dBm, 11n HT40_MCS7: -70dBm
WiFi Transmission Power
CE: <20dBm (2.4GHz), <23dBm (5.15GHz~5.25GHz); FCC: <30dBm (2.4GHz & 5.15GHz~5.825GHz)
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)
What's In The Box
| 1 x Wi-Fi Router Archer AX10 |
| 1 x Power Adapter |
| 1 x RJ45 Ethernet Cable |
| 1 x Quick Installation Guide |
